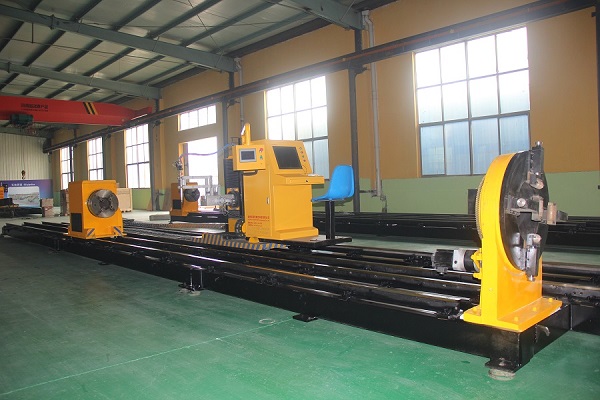

TDC-XF all profiles & pipes CNC Cutting Machine

Feature code：

Independent research and development to optimize CNC pipe system with excellent EGES DXF SAT and STL software compatibility.
The client can enjoy special cutting process development and life-long technical services free.
AC servo drive, transmission adopts to precision planetary gear reducer.

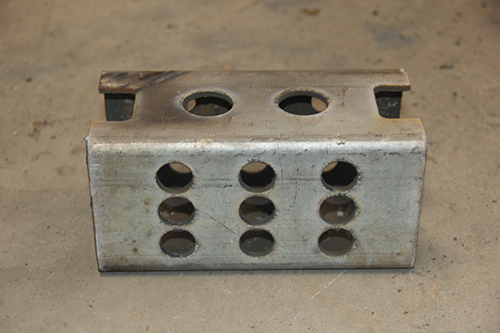

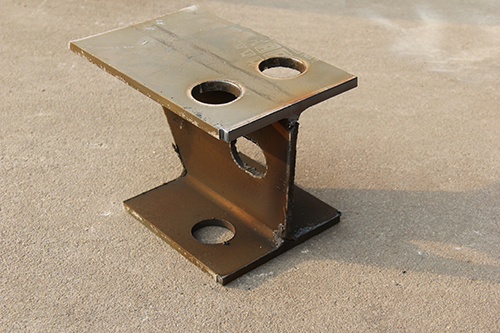

AutoCAD space programming system configuratingTIME application plug-ins, can meet the cutting process requirements like rectangular, tapered, polygonal, oval-shaped pipe, and other special fittings.

Model	TDC-XF
Effective cutting length (mm)	6000 (Can be customized)
Dimension(longitudinal track included) (mm)	7200×1350×2000 (Standard)
Cutting type	Flame or plasma
Cutting thickness (mm)	Flame：6~60mm； Plasma： 2~14mm (Standard）
Cutting speed（mm/min)	Flame：20~700, Plasma：500~3500
Control system	Industrial PC
Software	TIME PIPE
Max. piercing cutting thickness of plasma (mm)	14
Max. edge cutting thickness of plasma (mm)	18
Working pressure of compressed gas (MPa)	≥7
Gas flow of plasma (L/h)	4500
Fuel gas	Acetylene / Propane
