Strip cladding welding head

Feature code：

Selection principle of strip cladding welding equipment

Pipe cladding: TZH heavy duty manipulator + TR3 anti-floating rotator + strip cladding welding head + welding power source.

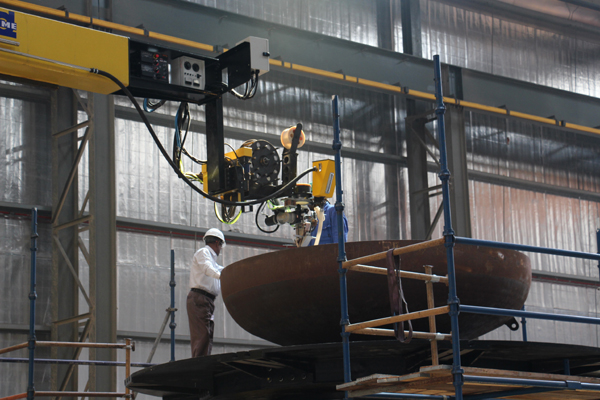

Dish head cladding: TZH heavy duty manipulator+TB1 postioner + strip cladding welding head + welding power source.
Tube-plate cladding: TZH heavy duty manipulator + TB6 horizontal rotating table + strip cladding welding head + welding power source.
Electro-slag cladding: It is recommended to select the magnetic control device.

Model	TIME: TFD 30-ESK-75 or Soudokay: SK 30-ESK-75	TIME: TFD 60-ESK-75 or Soudokay: SK 60-ESK-75	TIME: TFD 125-ESK-300 or Soudokay: SK 125-ESK-300
Strip width (mm)	30	30、60	30、60、90、120
Minimum Dia.(mm)	Longitudinal：Φ380 Circumferential：Φ450	Longitudinal：Φ450 Circumferential：Φ650	Longitudinal：Φ650 Circumferential：Φ800
Welding current (A)	SAW：380~500 ESW：450~650	SAW：650~950 ESW：850~1250	SAW：650~950 ESW：850~1250
Arc voltage (V)	SAW：27~32, ESW：22~25
Cladding linear speed (mm/min)	SAW：100~120, ESW：110~130
Wire feeder	TFD (TIME), NA-3SF (Lincoln), A6(Esab)
