The current page：Home > Products > CNC cutting machine > Dust removal equipment
Products

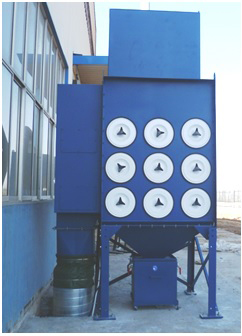

TDF series flux extractor

Feature code：
  • Compact structure, small occupy, low installation and commissioning cost.

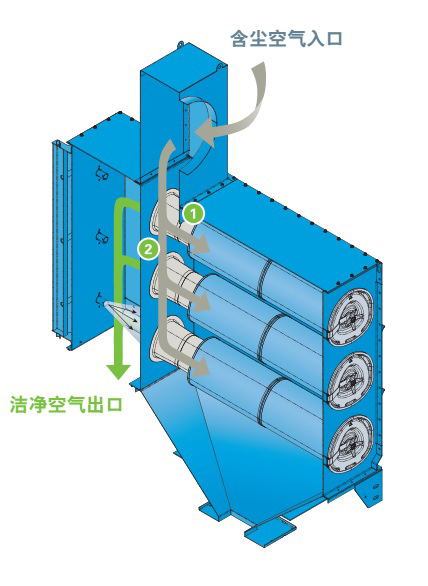

  • Downflow structure of the machine body. The minimum operating resistance is obtained under the condition that the air flow rate is guaranteed.
  • Replacing filter cartridge in cleaning air chamber convenient and safe.
  • Circulation system started automaticlly.
  • The purified air is discharged by air duct and fan to protect environment and realize green production.

Model

Processing air volume (m3/h)

Track width (mm)

Guide rail length (mm)

Input power (kW)

Number of filter (pieces)

TDF2-8

7000

3000～5000

≤15000

11.0

8

TDF2-12

10000

3000～5000

≤26000

15.0

12

TDF3-18

13000

5000～7000

≤26000

18.5

18

TDF4-24

16000

7000～10000

≤26000

22.0

24
